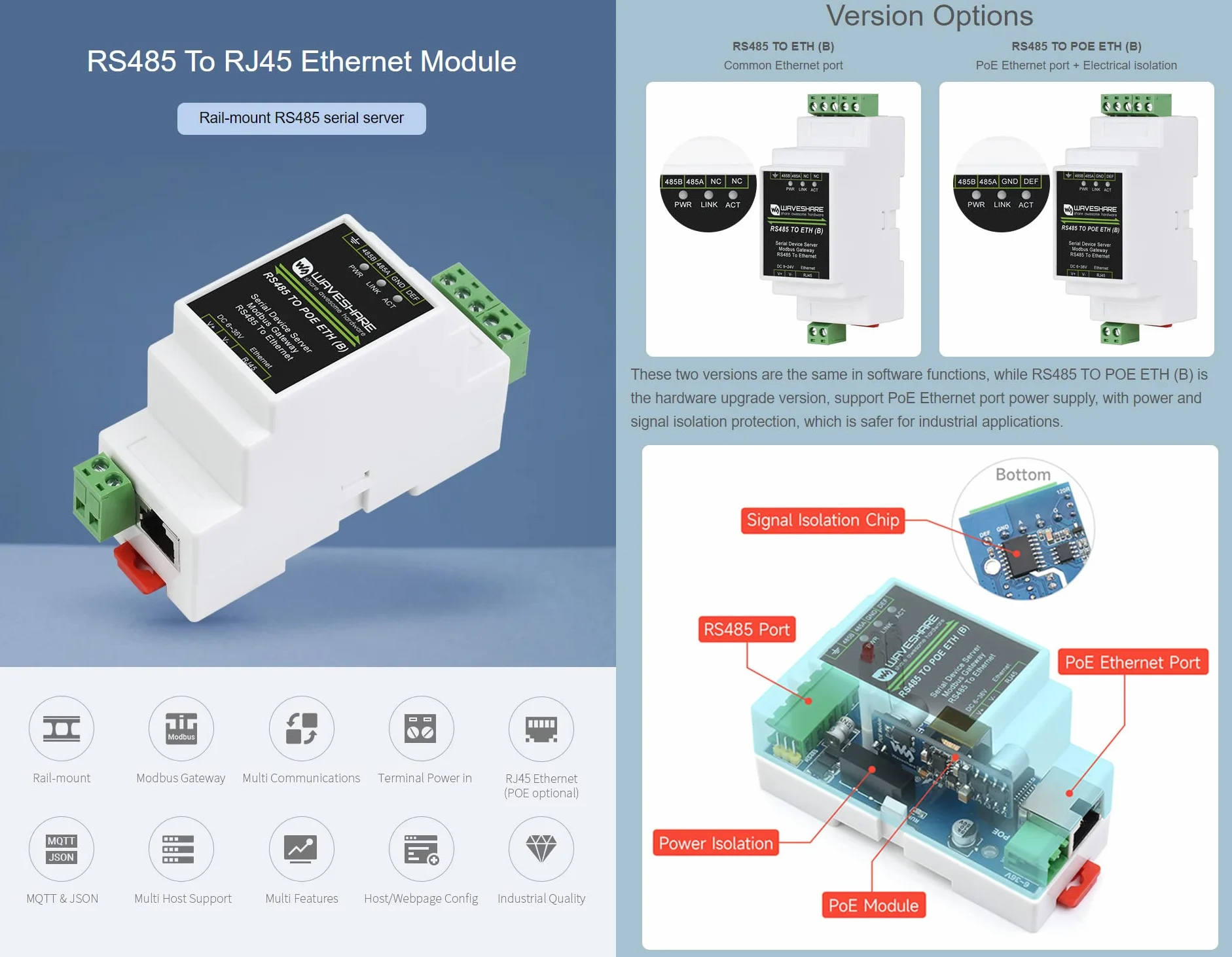

Waveshare Industrial Serial Server RS485 to RJ45 Ethernet TCP/IP to Serial Module Support Rail-Mount Modbus Gateway

Marka: Waveshare
Interfejs sprzętowy: Ethernet
Kolor: RS485 TO ETH (B)
Zgodne urządzenia: [Wywnioskowane] Sprzęt do automatyki przemysłowej, systemy akwizycji danych i inne urządzenia z interfejsem RS485 lub Ethernet i obsługą protokołu ModbusPokaż więcej
Liczba opakowań: 1
Zgodność z inteligentnym domem: Brak zgodności z inteligentnym domem
Liczba jednostek: 1 sztuk
Producent: Waveshare

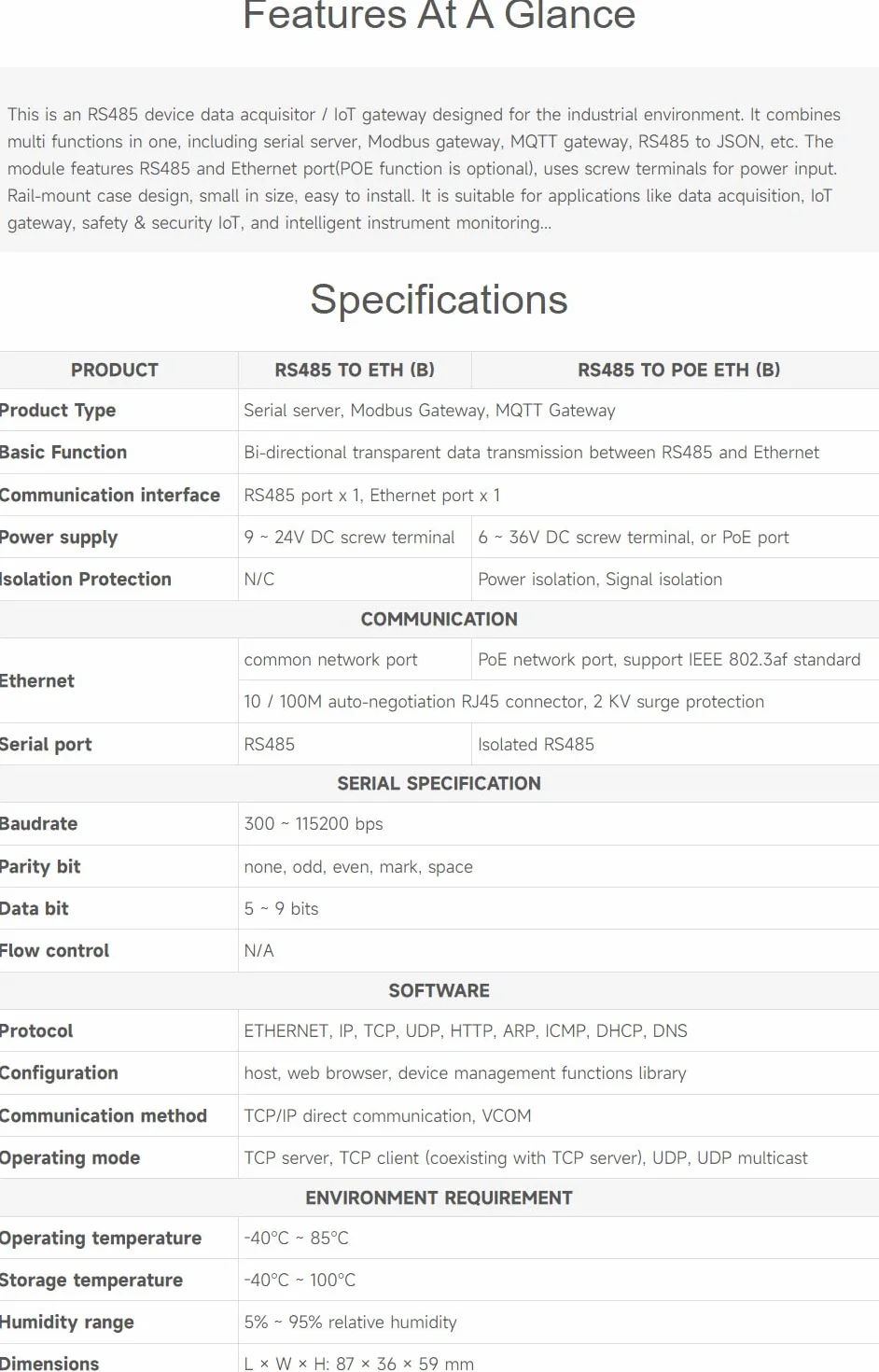

- This is a RS485 device data acquisitor / IoT gateway designed for industrial environment

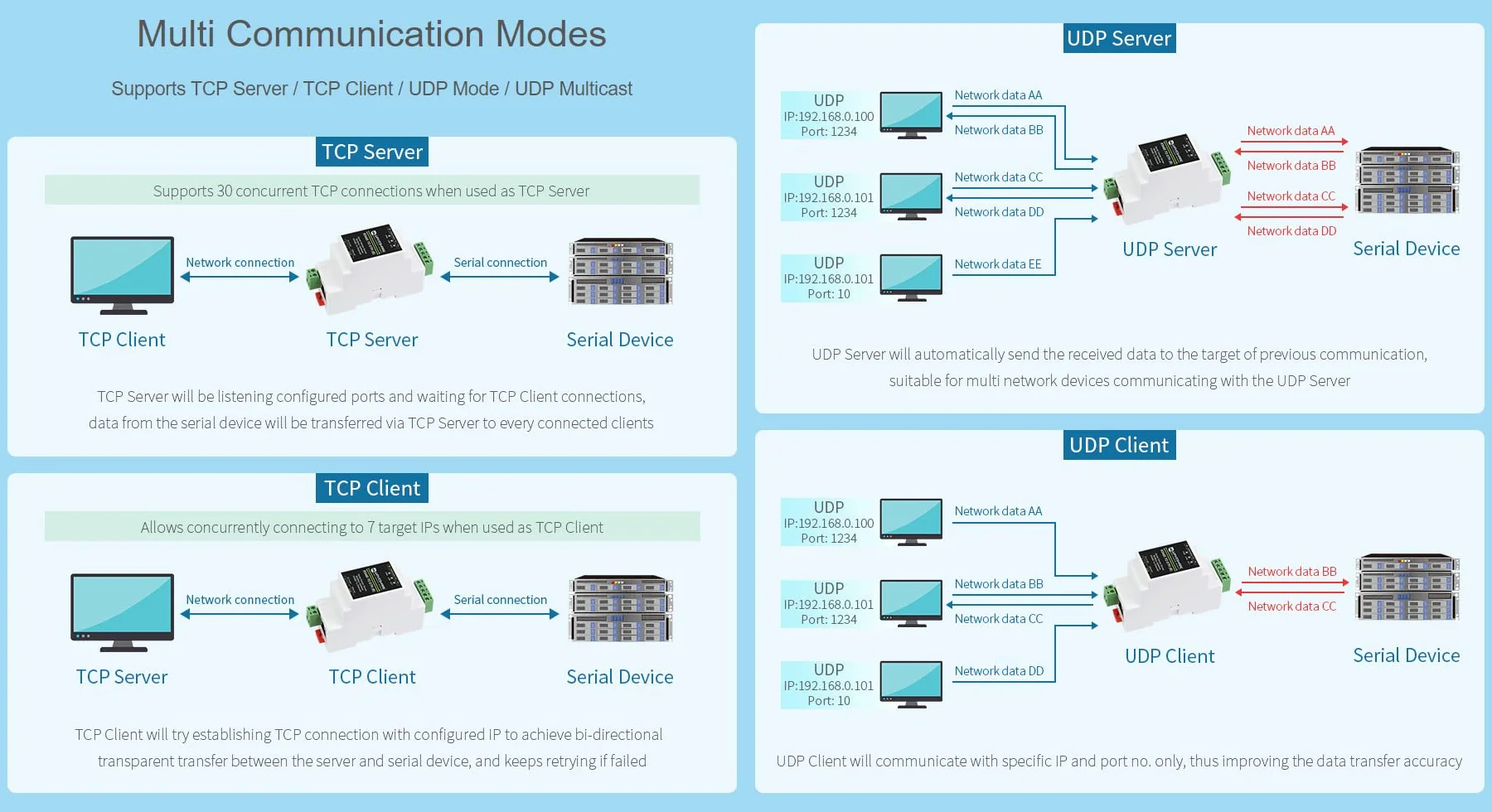

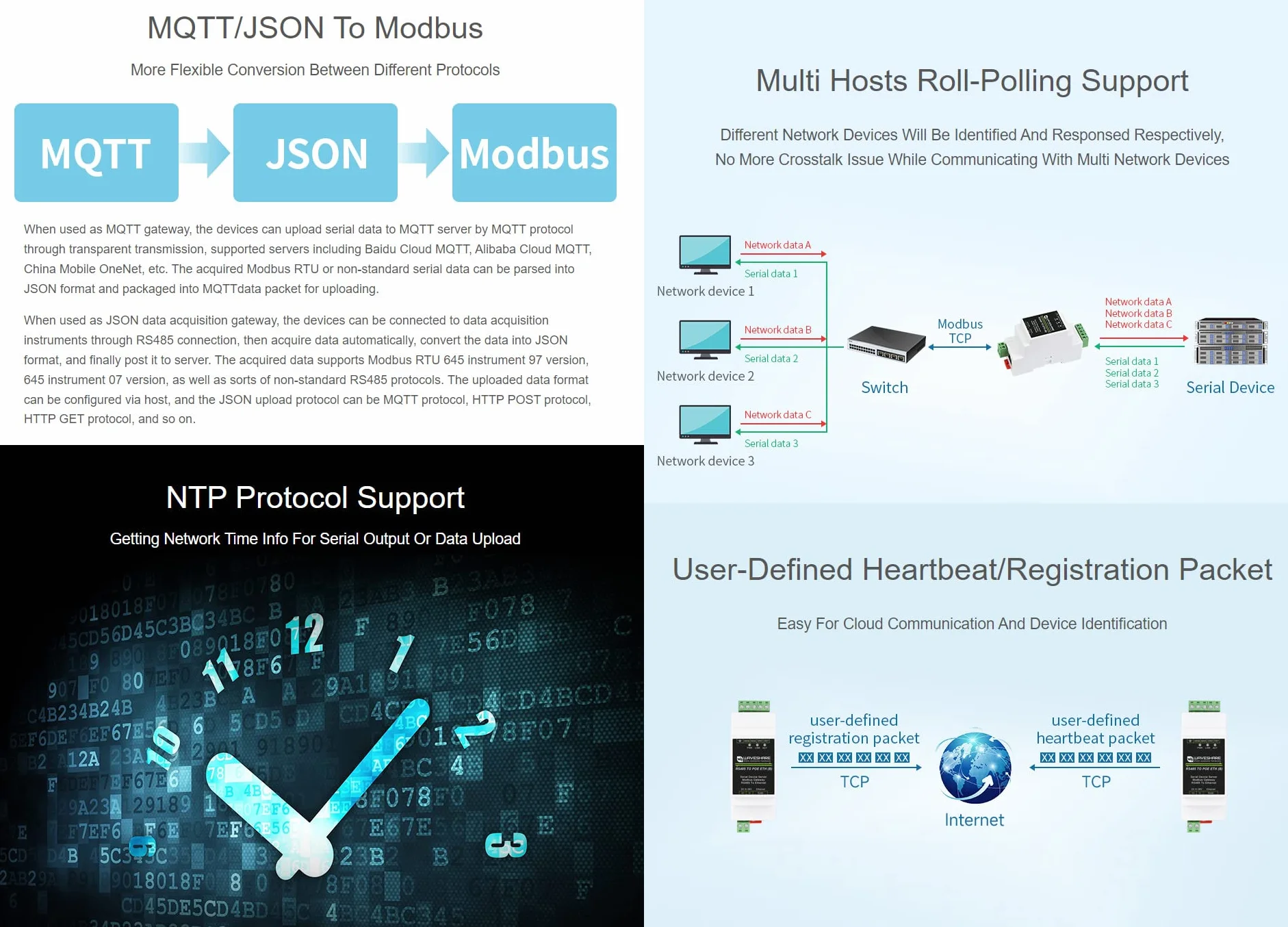

- It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc

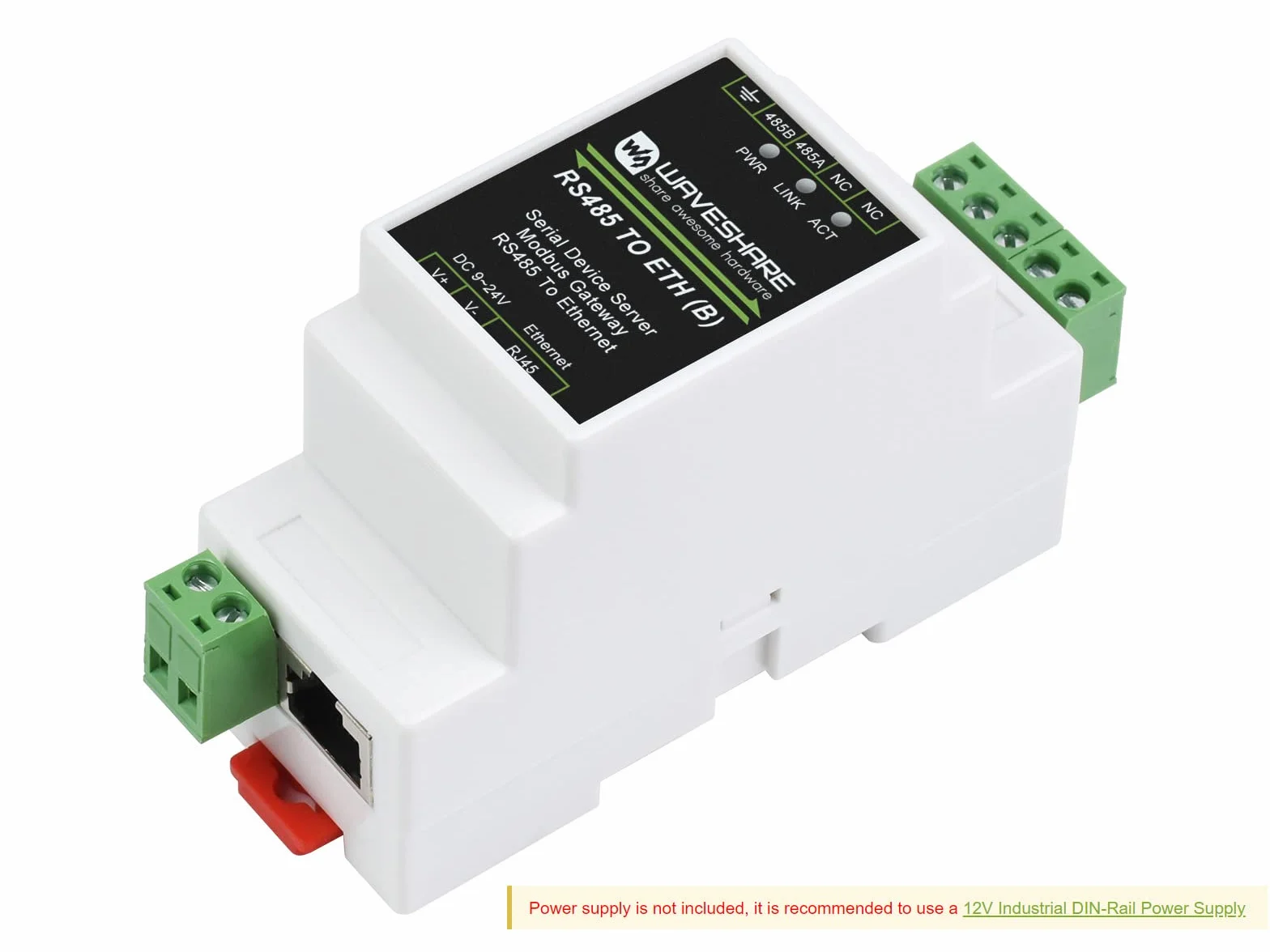

- The module features RS485 and Ethernet ports, uses screw terminals for power input, supports 9~24V wide range power supply(Note: Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply)

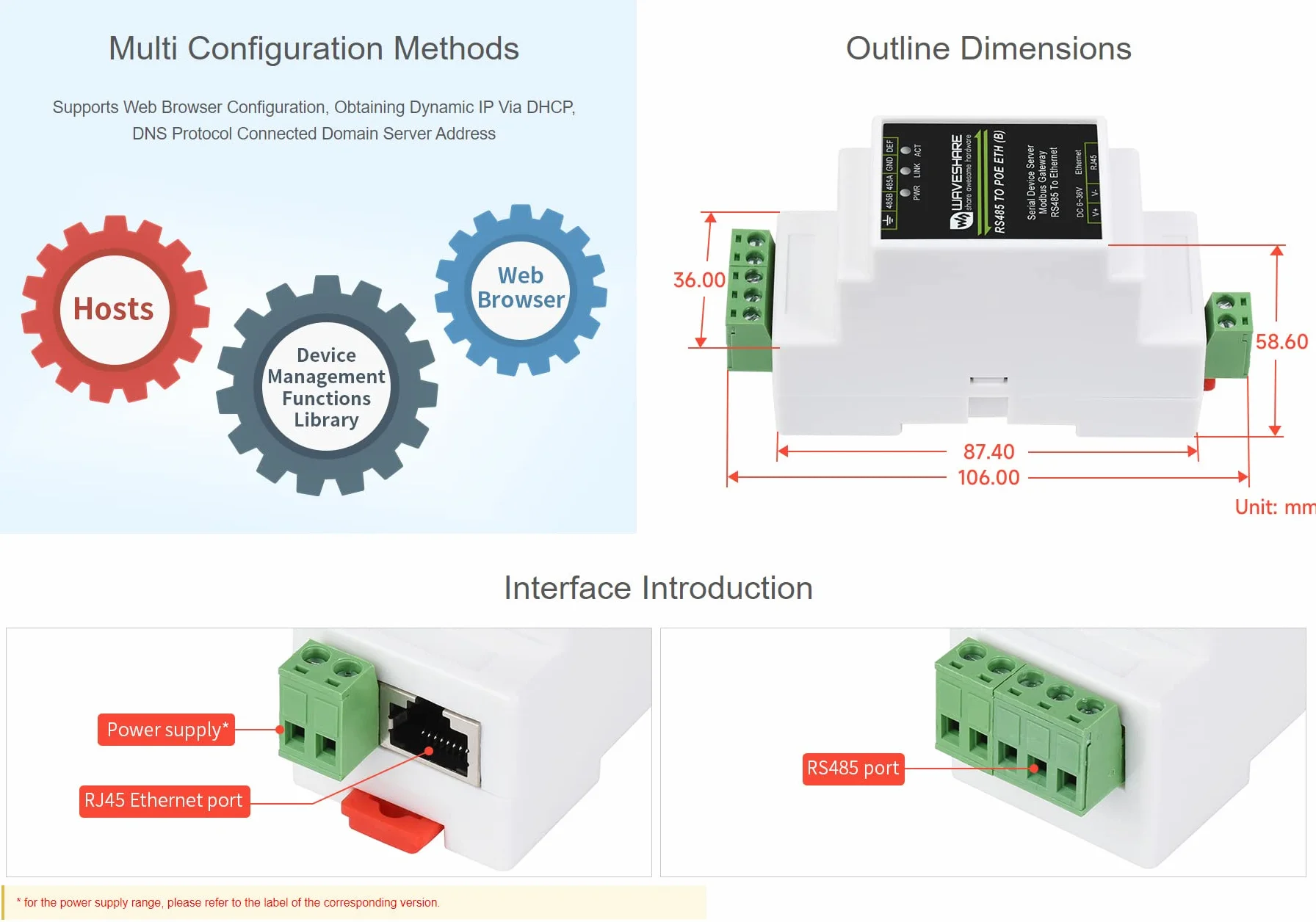

- Rail-mount flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring

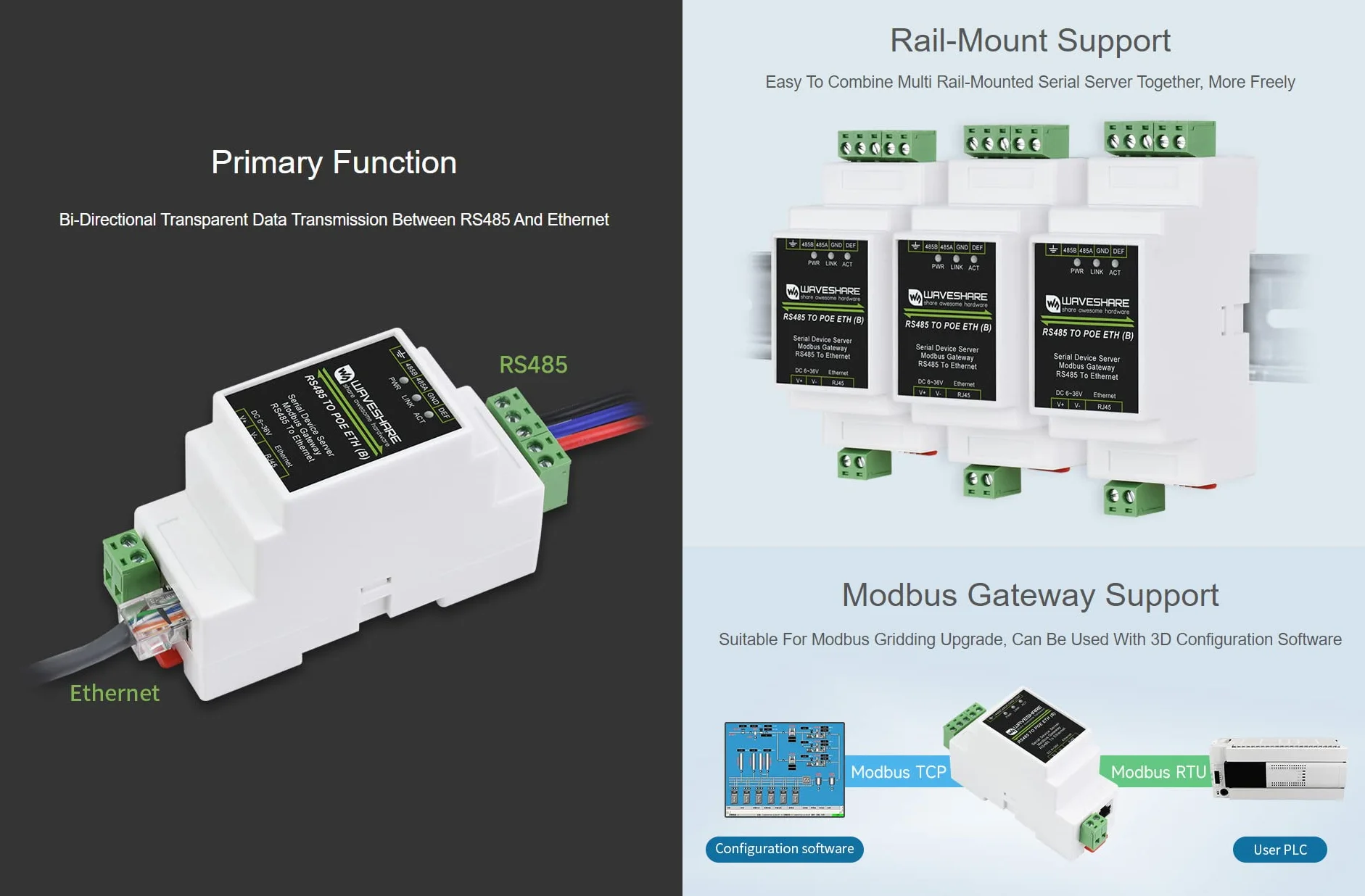

- Bi-Directional Transparent Data Transmission Between RS485 And Ethernet
